Feature:
1. The first level LED chip from Taiwan Epistar
2. With pure golden wire connection in LED
3. Grand A row material for module frame and mask
4. 4 layers PCB and copper plating thickness > 30mil
5. Ag alloy solder paster to ensure good soldering on PCB
6. Stainless steel screws when assembly
7. Disassembly and assembly are quick and easy
8. Three years warranty

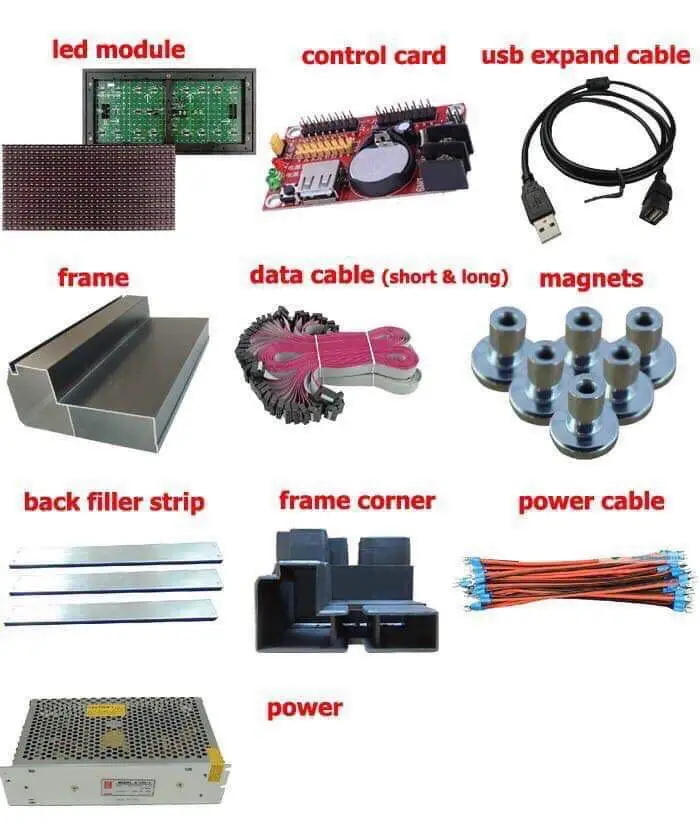

data cable for P2.5 P3 P4 P5 P6 P8 P10 indoor outdoor full single color LED screen
data cable for P2.5 P3 P4 P5 P6 P8 P10 indoor outdoor full single color LED screen
OUTDOOR FULL COLOR LED MODULE/DISPLAY | |||||||
type: | P4 | P5 | P6 | P8 | P10 | P10 | P16 |
pixel pitch(mm): | 4 | 5 | 6 | 8 | 10 | 10 | 16 |
led type: | SMD | SMD | SMD | SMD | DIP | SMD | DIP |
led driving method(scan): | 1/8 | 1/8 | 1/8 | 1/4 | 1/4 | 1/4 | static |
led module size(mm): | 256*128 | 160*160 | 192*192 | 256*128 | 160*160 | 320*160 | 256*256 |
cabinet size(mm): | 768*768 | 960*960 | 960*960 | 768*768 | 960*960 | 960*960 | 768*768 |
best viewing distance(m): | 4-300 | 5-300 | 6-300 | 8-300 | 10-300 | 10-300 | 16-300 |
viewing angle: | 140°(W)* 140°(H) | ||||||
brightness: | 5000 ~8000cd/m2 | ||||||
pixel density(dots/m2): | 62500 | 40000 | 27777 | 15625 | 10000 | 10000 | 3906 |
operating temperature: | -20ºC to +80ºC | ||||||
operating humidity: | 10% to 90% | ||||||
lifttime: | 100,000 hours | ||||||
refresh rate: | more than 1400Hz | ||||||
control method: | PC control, video synchronization | ||||||
input signal: | DVI/VGA, RGBHV, S-VIDEO, HDTV and so on | ||||||
protection feature: | over-heat, over-load, image complement, overcurrent, overvoltage, anti- thunder(optional) |
