Common Cathode Energy saving Led Panel 320mm*160mm P8 Led Video Wall Module
Energy saving common cathode led display modules P8 JC P8 OUTDOOR SMD Save energy full-color surface-mount LED...
- $46.35
-
$0.00 - $46.35
- Unit price
- per
Please hurry! Only 9999 left in stock
Subtotal:
$46.35
10 customers are viewing this product
Free Returns
Learn More.
Description
x

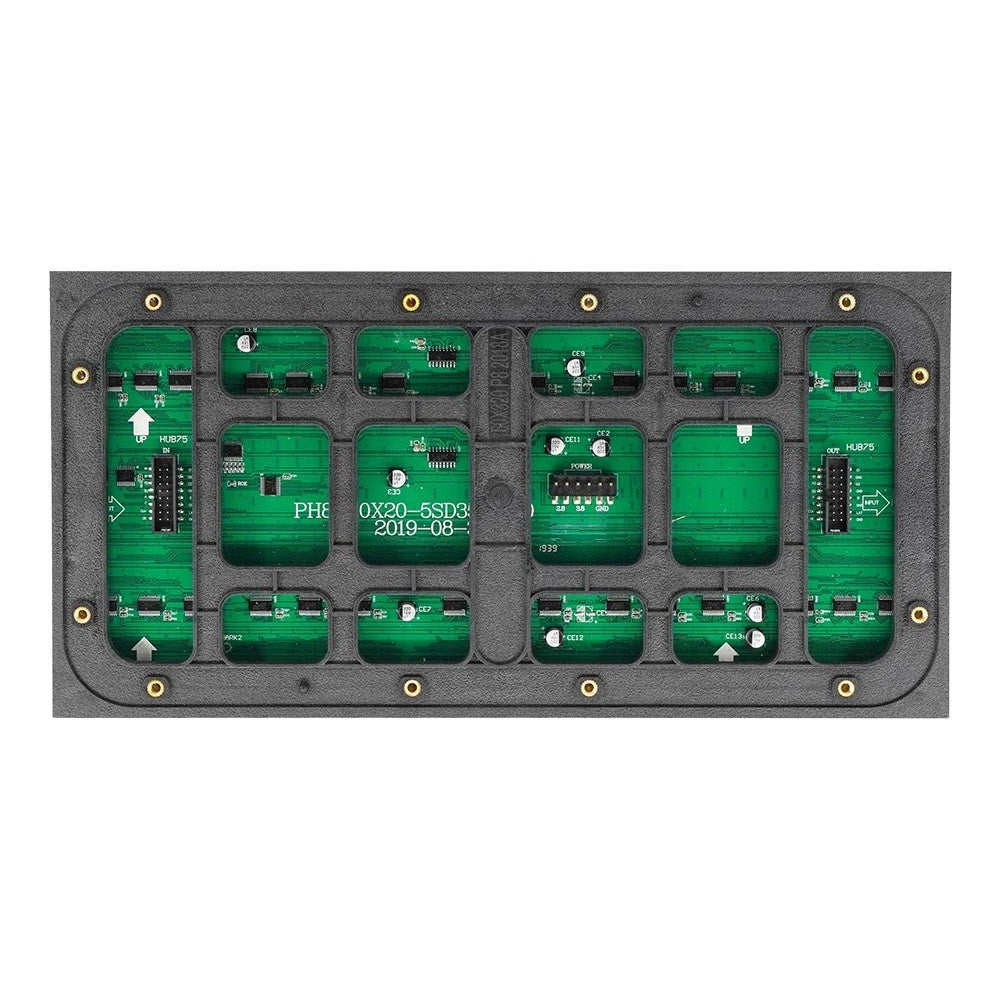

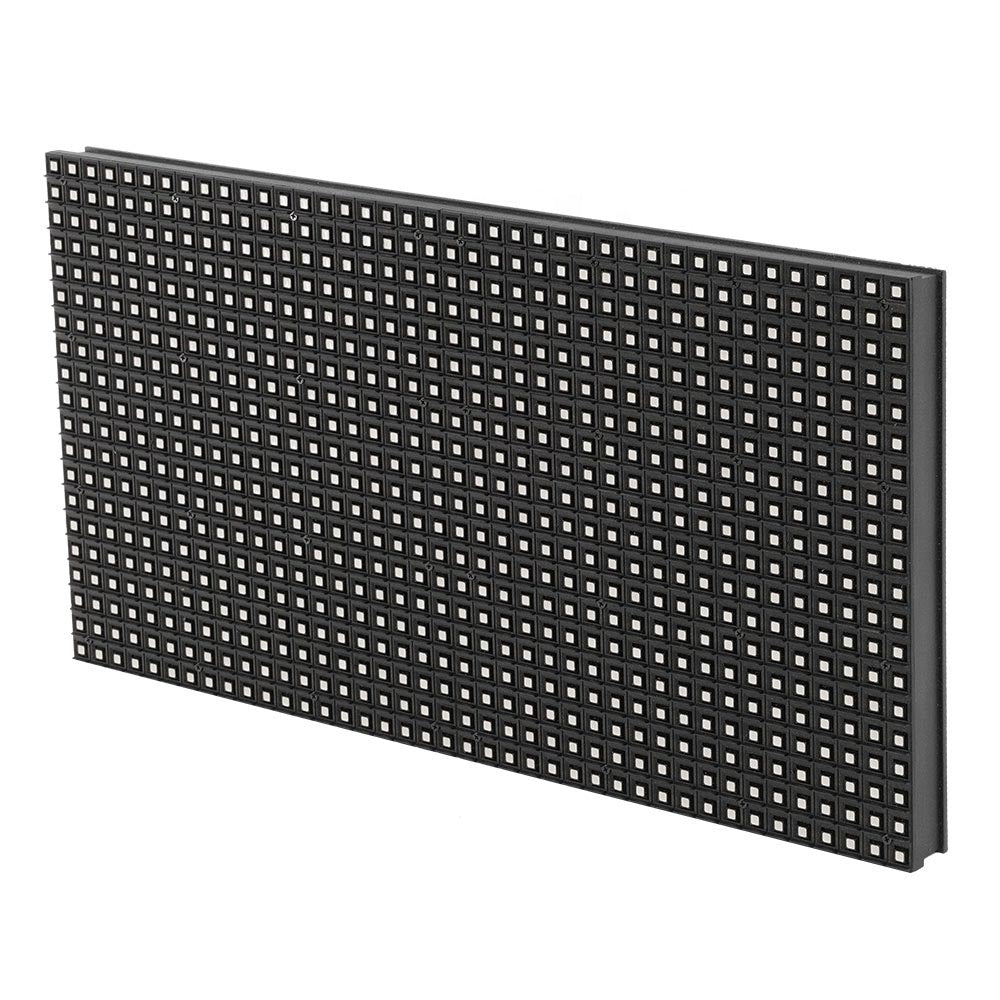

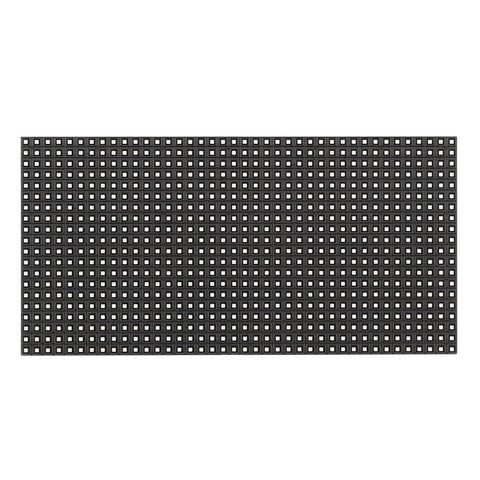

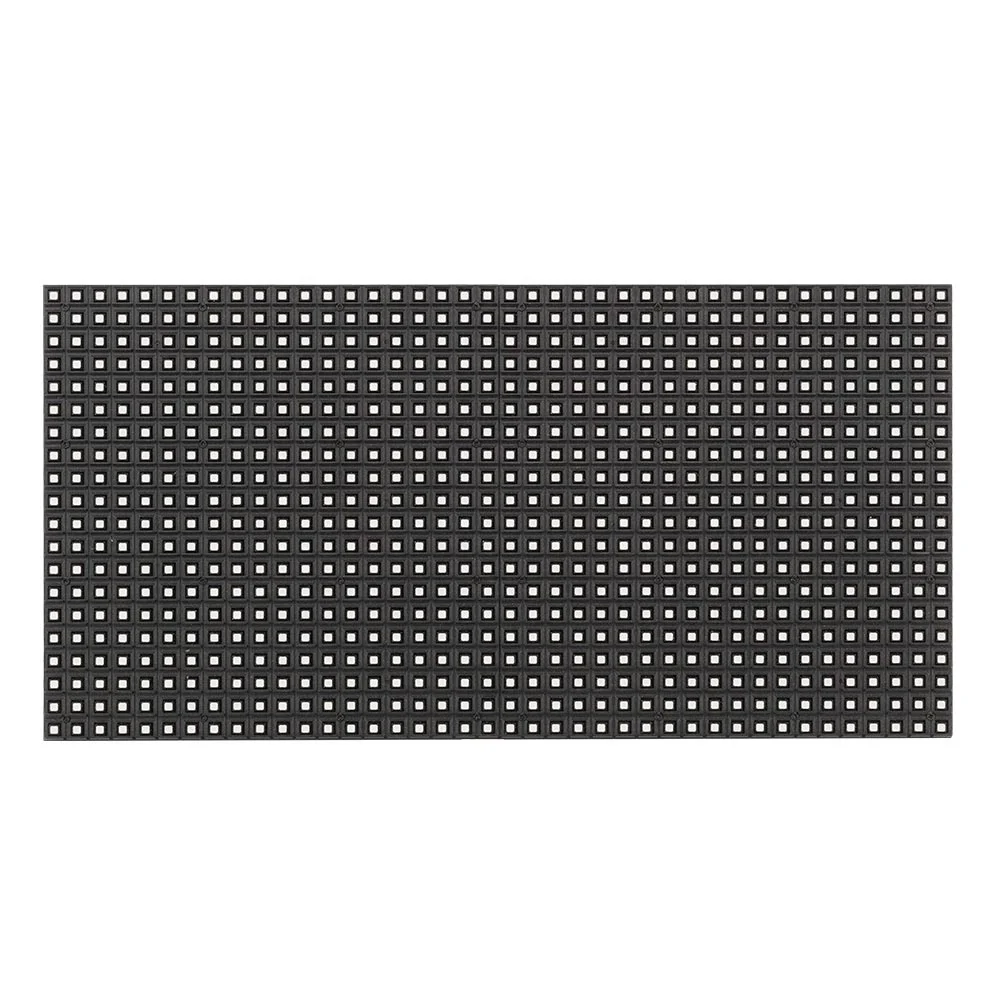

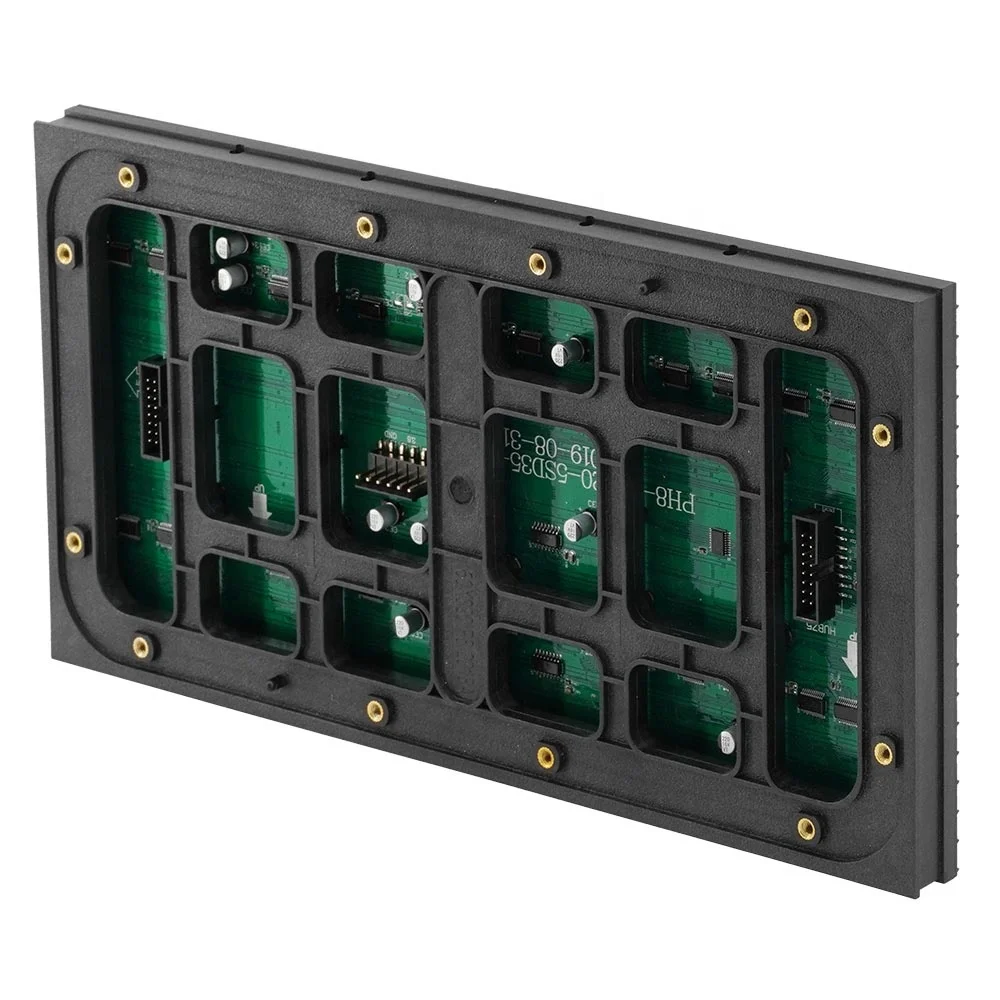

Energy saving common cathode led display modules P8
JC P8 OUTDOOR SMD Save energy full-color surface-mount LED display adopts international advanced surface-mount three-in-one packaging technology, and high-quality light-emitting chips. The driver IC is an indoor surface-mount full-color display in brightness, grayscale, contrast, high density, and visibility. It has many advantages in terms of angle, stability, color uniformity, color saturation, image edge fineness, and smooth video effects.
|
Pixel Pitch
|
8mm
|
|
Model
|
P8 outdoor common cathode full color led module
|
|
Pixel Configuration
|
SMD3535 1R1G1B
|
|
Module Resolution
|
40dotsX20dots
|
|
Module Pixles
|
800dots
|
|
Module Size
|
320mm(W) x160mm(H)
|
|
Voltage
|
DC 3.8V
|
|
Power Consumption
|
30W
|
|
Waterproof
|
IP65 front side
|
|
Serviceability
|
Rear service
|
|
Viewing Angle
|
H:160° V:160°
|
|
Brightness
|
≥7600 cd/sq.m
|
|
Optimal Viewing Distance
|
≥8m
|
|
Drive Method
|
1/4 scan
|
|
Contrast ratio
|
10000:01:00
|
|
Operating temperature
|
-20ºC to +60ºC
|
|
Operating humidity
|
20% to 90%
|
|
Lifetime (50% brightness)
|
100,000 hours
|
|
Refresh Rate
|
≥ 3840 Hz
|
|
Operating Platform
|
WINDOWS(WIN98,WIN2000, WIN XP)
|
P8 outdoor Led Module Feature
1. Energy saving and environmental protection: The use of low-voltage power supplies (2.8V and 3.8V) can effectively reduce the power consumption of the entire screen. The power consumption of the screen with a working voltage of 5V compared to the same period can be reduced by more than 30%
2. Low radiation is healthier: ① Working at low pressure, lower radiation; ② The maximum current and peak of the power supply are lower, and the radiation is lower; ③ Reduce the instantaneous current of the whole frequency, and the radiation is lower.
3.PWM drive: ① Support highlight and high gray; ② Support high brush display.
3.PWM drive: ① Support highlight and high gray; ② Support high brush display.
4.
The quality is more stable and reliable: ① Using low-voltage power supply, while reducing power consumption, the heat is greatly reduced. Compared with the 5V working voltage of the screen, the heat is reduced by more than 50%, and the heat of the whole screen is reduced. The service life of resistance, capacitance, etc.); ② Effectively reduce the maximum current of a single line, thereby reducing the maximum current of the power supply, which can effectively protect the line tube, power supply and lamp, and increase the service life; ③ Effectively reduce the pulse peak voltage generated by the switches on the column, and protect the lamp more effectively.
P8 oudoor Led Module Advantage
1.
LED is a temperature sensitive element. As the temperature increases, light decays, color cast, thermal expansion and contraction become more serious, which affects the air tightness of the LED. The common cathode technology reduces the temperature of the screen body and solves the above problems well.
2.The common cathode LED drive mode can accurately control the voltage, while reducing the power consumption, it also reduces the heat generation. The LED has no wavelength drift under continuous operation, and the true color is displayed stably!
3.The picture of common cathode products is delicate and true-to reduce the degree of color cast in low-brightness environment, the color gray scale changes more uniformly, and the picture is fresher and more delicate, with high fidelity.
4.The energy consumption is reduced, thereby greatly reducing the temperature rise of the system, effectively reducing the probability of LED damage, and improving the stability and reliability of the entire display system. At the same time, electronic components have a longer life span at relatively low temperatures.

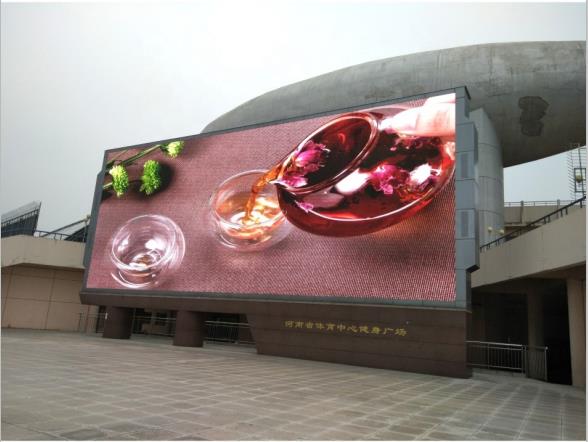

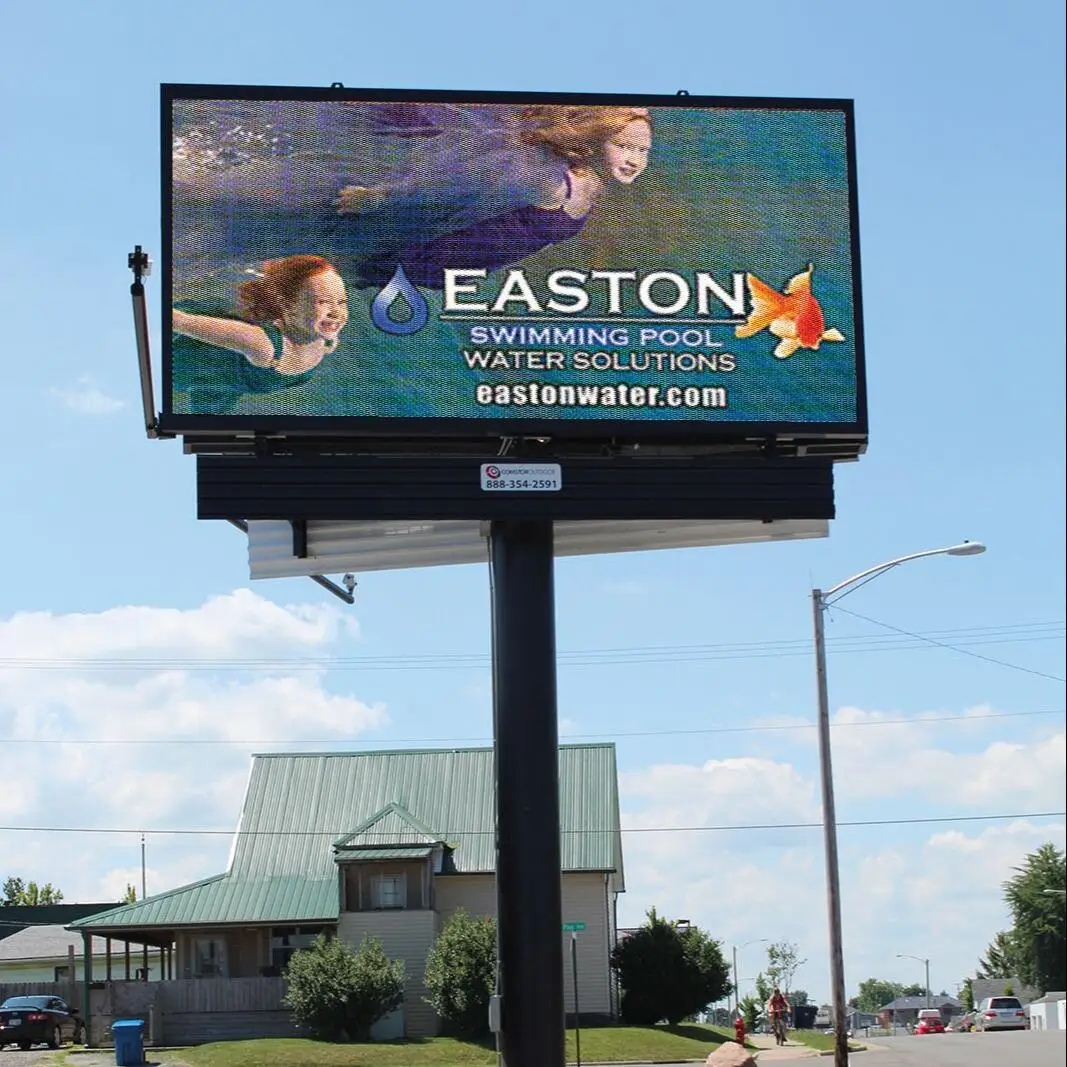

Application areas:

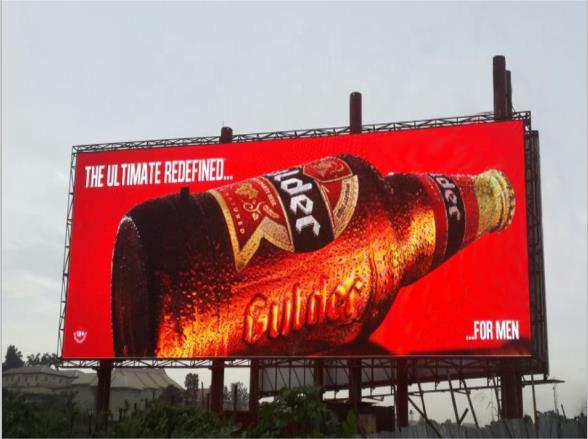

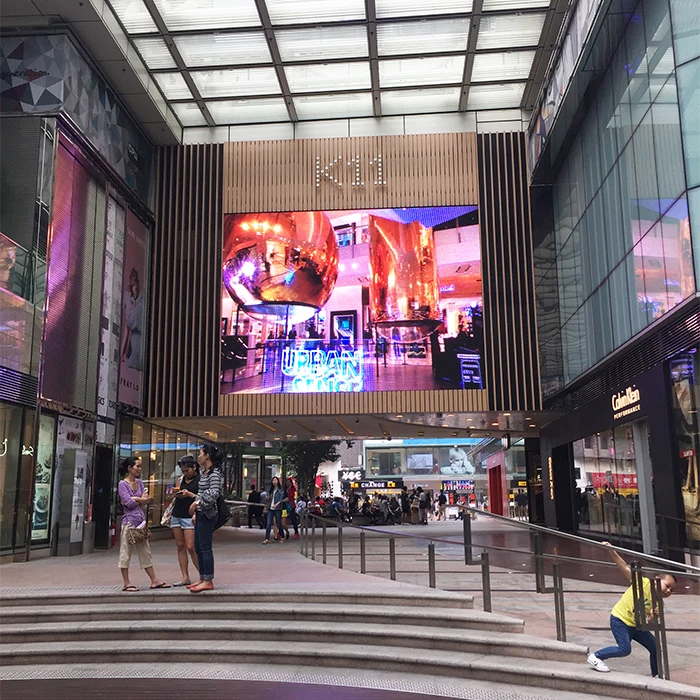

P8 outdoor save energy SMD full-color surface mount LED display is widely used in outdoor stage backgrounds, outdoor stadiums, conference rooms, Hotel lobby ,supermarkets, exhibition halls, airports due to its delicate, uniform color, high stability, and long service life. Waiting for public occasions.
1.
Q: Are you a factory or trading company?
A: We are a OEM/ODM factory.
2.
Q: What payment methods your company accept?
A: We accept most ofthe payment methods,but mainly accept T/T, L/C, Western Union, Paypal and MoneyGram.
3.
Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 1-3years after delivery at best.
4.
Q: I haven't done business with you guys before,how can i trust your company?
A: Our company has been in Alibaba. com for almost 8 years, which is longer than most of our fellow suppliers,we've been golden suppliers
5.
Q: what's the shipment terms and delivery time of your company?
A: Well, they depends on the quantity of your order. As you know, we need time to manufacture the machines. but mostly, the shipment time is 3-8 working days after delivery. For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG. As for detailed cost, it depends on your final order.
6.Q: Do you give any discount ?
A: I'll surely try my best to help you get those by the best price and good service at the same time.
7.Q: I would like to ask you if it's possible to have my logo ·····on the product.
A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extraservice, so a little ··bit extra service fee is needed.
