led display controller led video switcher like nova vx4s-n vx4s sdi video processor vx600, vx6s vx1000, vx16S
Products Description The VX4S is a professional LED display controller. Besides the function of display control, it...
Vendor:
SKYDEPOT
SKU:
159054815011717_69355746
Availability:
Out Of Stock
Product Type:
DISPLAY & AUDIO
- $1,588.16
-
$0.00 - $1,588.16
- Unit price
- per
Please hurry! Only -1 left in stock
Subtotal:
$1,588.16
10 customers are viewing this product
Free Returns
Learn More.
Description
x
Products Description
1) The inputs of the VX4S include CVBS×2, VGA×2, DVI×1, HDMI×1 , DP ×1 and SDI×1. They support input resolution up to 1920×1200@60Hz; the input images of VX4S can be zoomed point-to-point according to the screen resolution;
2) Provide seamless high-speed switch and fade-in/ fade-out effect so as to strengthen and display picture demonstration of professional quality;
3) The location and size of PIP can both be adjusted, which can be controlled at will;
4) Adopt the Nova G4 engine; the screen is stable and flicker free without scanning lines; the images are exquisite and have a good sense of depth;
5) Can implement white balance calibration and color gamut mapping based on different features of LEDs used by screens to ensure reproduction of true colors;
6) HDMI/external audio input;
7) 10bit/8bit HD video source;
8) The loading capacity: 2.3 million pixel;
9) Support multiple controller montage for loading huge screen;
10) Support Nova's new-generation point-by-point correction technology; the correction is fast and efficient;
12) Adopt an innovative architecture to implement smart configuration; the screen debugging can be completed within 30 seconds; greatly shorten the preparation time on the stage;
13) An intuitive LCD display interface and clear button light hint simplify the control of the system.
Details Images

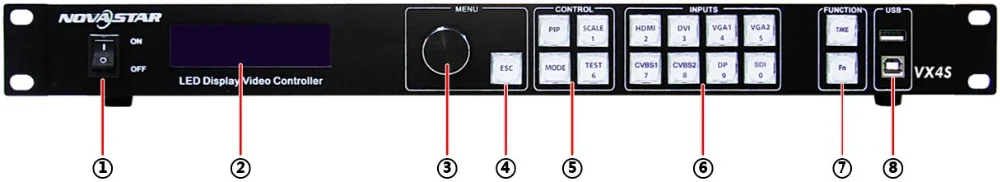

Front panel
|
①: Power switch.
|
|
②: Operation screen.
|
|
③: Knob. to press knob means Enter or OK, rotating knob represents selection or adjustment.
|
|
④: ESC. Escape current operation or selection.
|
|
⑤: Four control keyboard shortcuts.
PIP:
PIP Turn-on/Turn off. The lighting of this key represents the turn-on of PIP; otherwise, PIP is turned off.
SCALE: Picture zoom turn-on/turn off. The lighting of this key represents the turn-on of zoom function; otherwise, zoom function is unavailable MODE: Shortcut menu of loading or storage of display model. The key is light when entering the model or shortcut menu, in case of exiting, the key is not bright. TEST: Shortcut key of turn-on/turn-off of testing picture. In case of entering testing picture, the key is bright; otherwise, the key is not bright. |
|
⑥: Shortcut keys for switching of 8 signal input source.
Short press to set as the main screen input source, and long press to set as PIP input source. the key is bright after press when the video source has signal; the key flashes when the input of video source has no signal. the setting result can be checked while setting on the display screen and LCD screen |
|
⑦: Function keys
TAKE: Display switching shortcut key. After short pressing TAKE key, PIP will be opened; if it has been opened, the switching of between MAIN and PIP will be realized. Fn: Custom shortcut key. |
|
⑧: Flat mouth
(Type A, female USB) is USB interface, which connects U disk;
Square mouth (Type B female USB) is USB controlling interface, Communication with PC. |

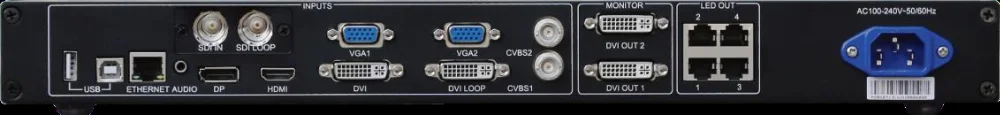

Rear Panel
Tips: In order to improve the user's experience, the layout of interface may be adjusted a little, The picture is only for reference.
|
Input Source
|
|
|
AUDIO
|
Audio Input
|
|
DP
|
DP Input
|
|
HDMI IN
|
HDMI Input
|
|
SDI IN
|
SDI Input
|
|
DVI IN
|
DVI Input
|
|
VGA1~VGA2
|
2 -Channel VGA Inputs
|
|
CVBS1~CVBS2
|
2 -Channel PAL/NTSC TV composite video Input
|
|
Output Interface
|
|
|
DVI LOOP
|
DVI LOOP Output
|
|
SDI LOOP
|
SDILOOP Output
|
|
Monitor -DVI OUT 1
|
DVI Monitoring Interface 1
|
|
Monitor -DVI OUT 2
|
DVI Monitoring Interface 2
|
|
LED Out 1,2,3,4
|
HDMI OUTPUT
|
|
Controlling Interface
|
|
|
ETHERNET
|
Network Control (Communication with PC, or Access Network)
|
|
Type B, female USB
|
USB Control (Communication with PC, or Cascade IN)
|
|
Type A, female USB
|
USB Cascade OUT
|
|
POWER
|
|
|
AC-100-240V-50/60HZ
|
AC Power interface
|
Tips:The two USB ( typeA) on front panel and rear panel are both forbidden to connect with PC directly.
|
Input Index
|
||
|
Port
|
Number
|
Resolution Specification
|
|
CVBS
|
2
|
PAL/NTSC
|
|
VGA
|
2
|
VESA Standard, support max. 1920 ×1200@60Hz inputng
|
|
DVI
|
1
|
VESA Standard (support 1080i input), support HDCP
|
|
SDI
|
1
|
480i,576i,720P,1080i/P
|
|
HDMI
|
1
|
EIA/CEA-861 standard, in accordance with HDMI-1.3 standard, support HDCP
|
|
DP
|
1
|
VESA Standard
|
|
Output index
|
||
|
Port
|
Number
|
Resolution specification
|
|
DVI LOOP
|
1
|
Consistent with DVI input
|
|
VGA
|
1
|
1280×1024@60Hz 1440×900@60Hz
|
|
DVI
|
1
|
1680×1050@60Hz 1600×1200@60Hz
1600×1200@60Hz – Reduced 1920×1080@60Hz 2560×816@60Hz 2048×640@60Hz 1920×1200@60Hz 2304×1152@60Hz 2048×1152@60Hz 1024×1280@60Hz 1536×1536@60Hz Self-defined output resolution (Bandwidth optimization) Horizontal resolution maximum 3840 pixels Vertical resolution maximum 1920 pixels |
|
SDI LOOP
|
1
|
480i,576i,720p,1080i/p Consistent with SDI input
|
|
Specification of complete machine
|
|
|
Input power
|
AC 100-240V, 50/60Hz
|
|
Overall power consumption
|
25W
|
|
Temperature of working environment
|
-20℃~60℃
|
|
Humidity of working environment
|
0%~95%
|
|
Size
|
482.6×251.5×45(mm)
|
|
Net weight
|
2.55 Kg
|
