Tab-tensioned Motorized Screen In-ceiling Insert Intelligent Recessed Electric 160 inch Projection Grey Fabric for UST Projector

8 sold in last 35 hours
Product Description XYSCREENS Intelligent Tab-tension Electric Motorized Projection Screen EC series Designed to deploy in front of a...
Vendor: SKYDEPOT
SKU: 159060903011717_69355773
Availability: In Stock
Product Type: DISPLAY & AUDIO
$3,524.00
$0.00
$3,524.00
Please hurry! Only 1000 left in stock
Subtotal: $3,524.00
 More payment options
10 customers are viewing this product

Free Returns

Learn More.

Tab-tensioned Motorized Screen In-ceiling Insert Intelligent Recessed Electric 160 inch Projection Grey Fabric for UST Projector

$0.00 $3,524.00

Tab-tensioned Motorized Screen In-ceiling Insert Intelligent Recessed Electric 160 inch Projection Grey Fabric for UST Projector

$0.00 $3,524.00
Screen Size: 160 inch
Display Ratio: 16:10
Description
Description
x
Product Description

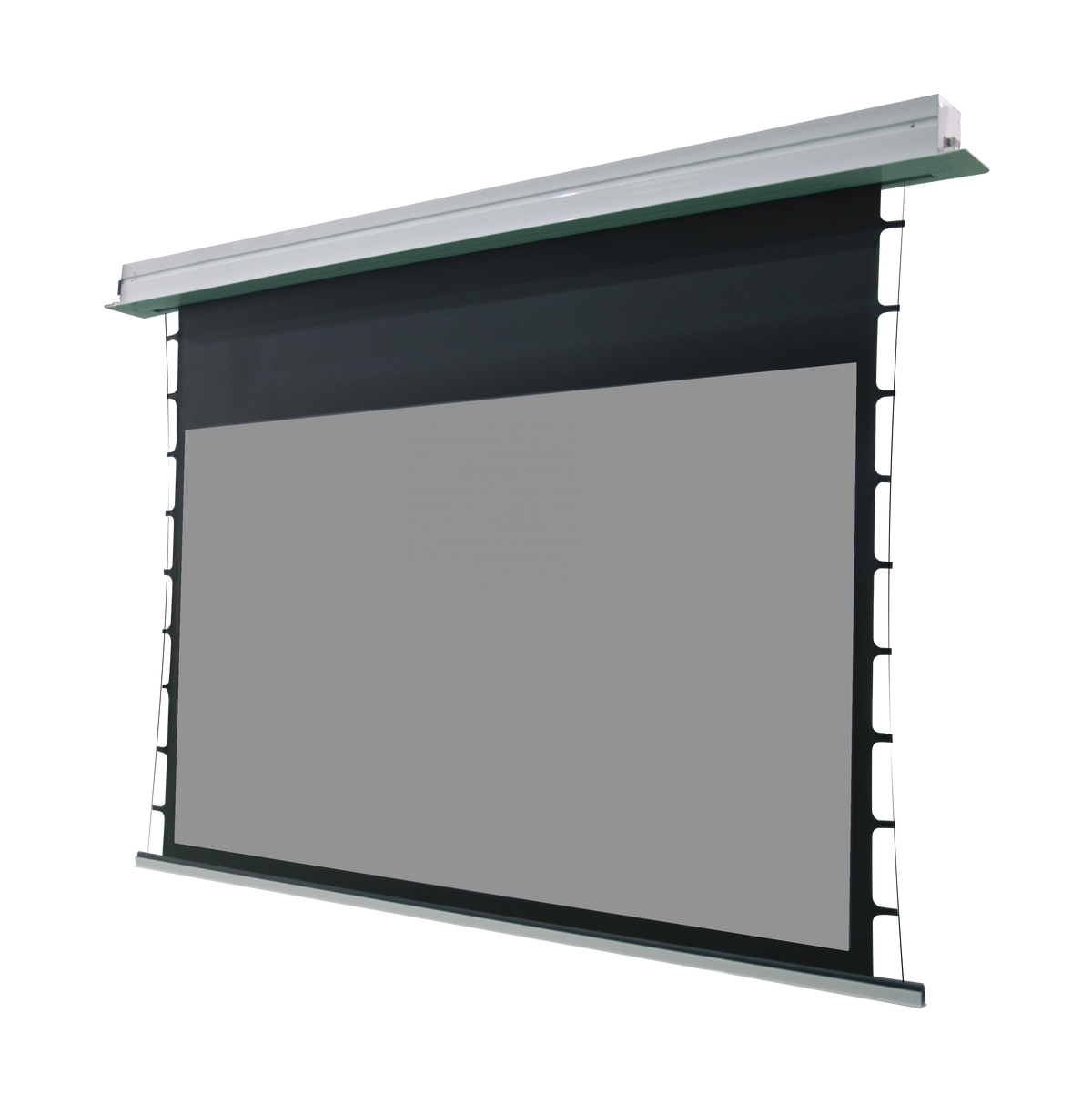

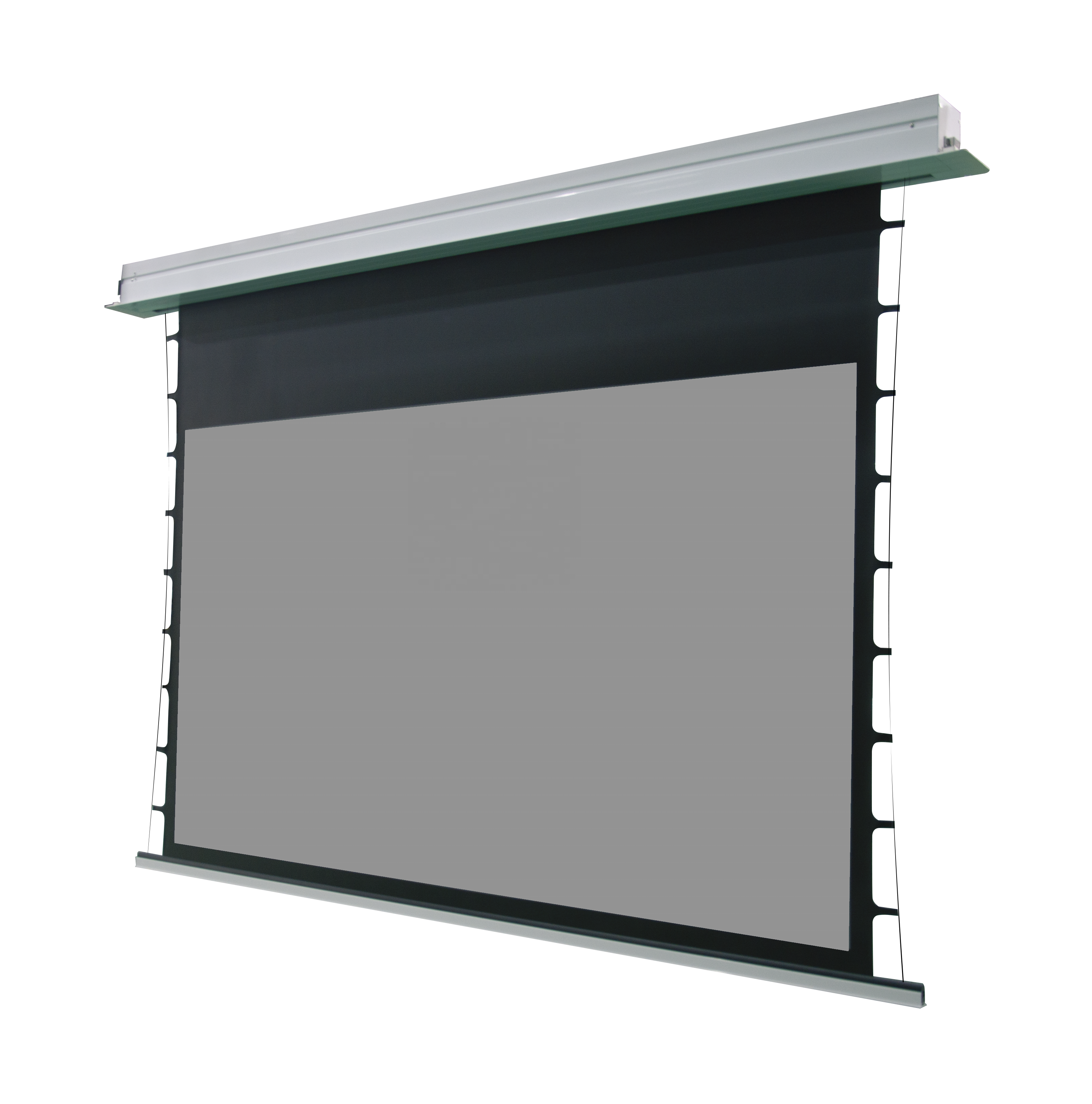

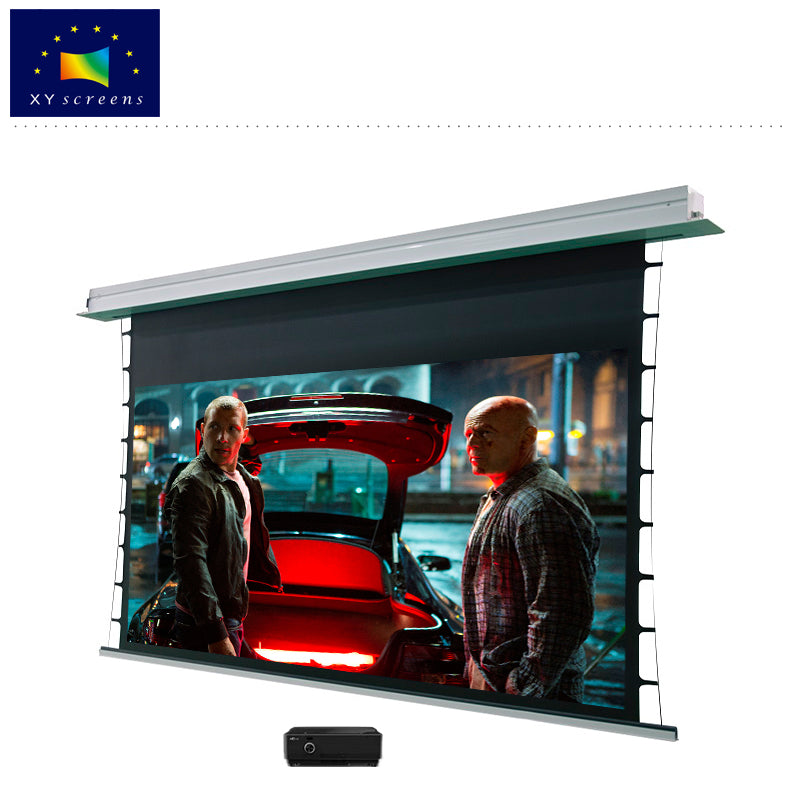

XYSCREENS Intelligent Tab-tension Electric Motorized Projection Screen EC series
Designed to deploy in front of a flat panel TV when a larger projected image is desired.

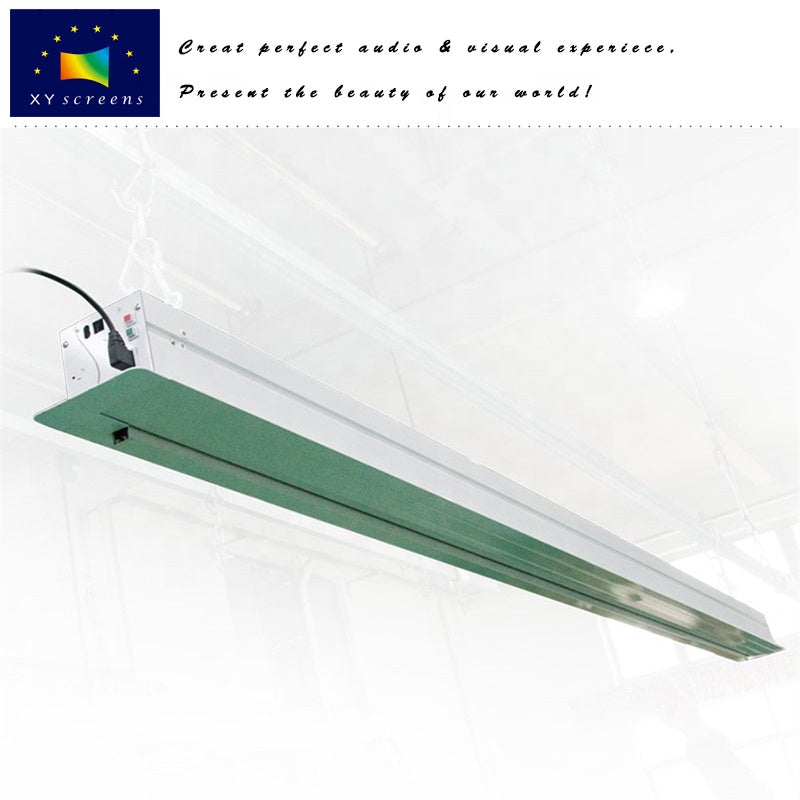

Easy Installation- Adjustable floating special brackets make ceiling or wall installation extremely easy.
Stylish and durable - The aluminum alloy housing is stylish and durable, available in white or black color. The slim bottom bar will retract into the housing as a cover.
Motor in roller design - Special Motor in roller design keeps a quiet and smooth operation.
Equipped with quiet tubular motor - Equipped with quiet tubular motor keep a quiet operation.
Custom size - Screen fabric has a black border all around. Standard large upper black drop for format at 4:3/16:9/2.35:1.
Customer required format or black border is acceptable.
Equipped with IR/RF control, 12V trigger port and high quality controller.

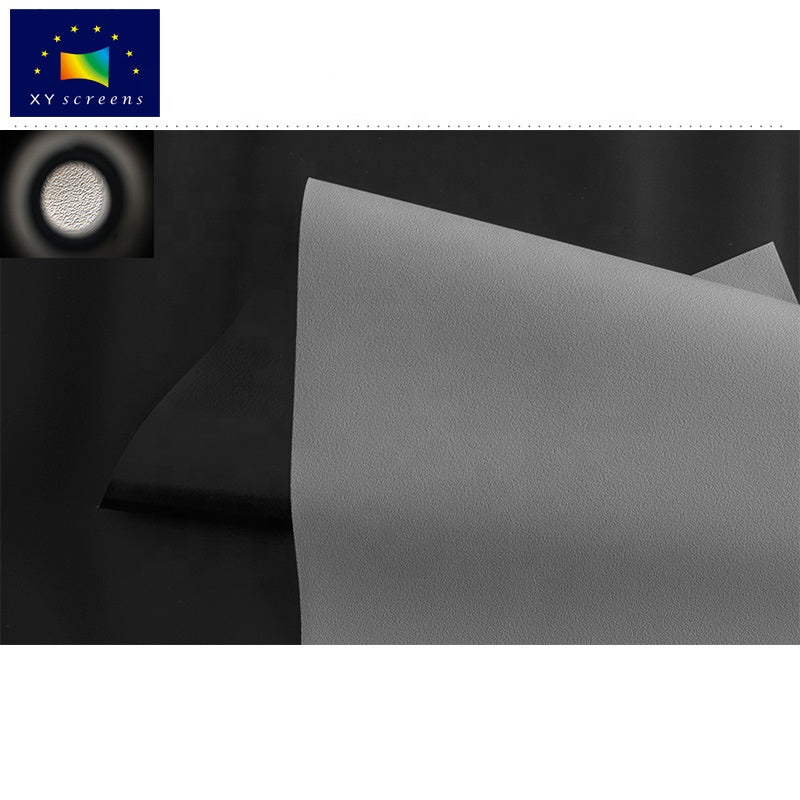

GF1 grey front projection fabric
Materials: Soft PVC+ Special Coating Color: Dark Grey
3D: Active 3D Resolution: 4K
Gain: 0.8 View Angle: 160 Degree
Max Width: 3.66 m Thickness: 0.31mm
Application：Suitable for Long/Short/Ultra Short Throw or any common projectors

Famous Brand Motor


High Speed Mute Tubular Motor


Delicat Structure Design
Smooth Operational, Accurate Positioning, Low Noise, Powerful and Durable.

Bulit-in Remote Control (RF/IF)

RF remote-controlled distance reached 25m in any direction. IR remote-controlled distance reaches 8m, in the direction ± 60 degree.

External RF Remote Control

You can control the screen up and down with both the manual switch or the remote control.
Intelligent End Cap
1.12V Trigger Interface; 2.RS480 Dry Contact; 3.IR Interface; 4.Manual Control Switch.
Wired Trigger
1.The projector and projection screen is connected with a cable.
2.Press the projector remote control to turn it on or off, then the screen will automatically drop or rise.
3.Input voltage range：DV/AC 5V-12V.
Wireless Trigger
1.The projector is connected to the trigger and the trigger is connected to AC power.
2.Press the projector remote control to turn it on or off, then the screen will automatically drop or rise.
3.Input voltage range：DV/AC 5V-12V.
Specification
Housing Material:
Aluminum Alloy
Housing Color:
White
Size:
60-170 inch /Customized
Aspect Ratio:
16:9/4:3/2.35:1/1:1/Customized
Dimension of HCL1 series
Any size and ratio can be customized by customers.

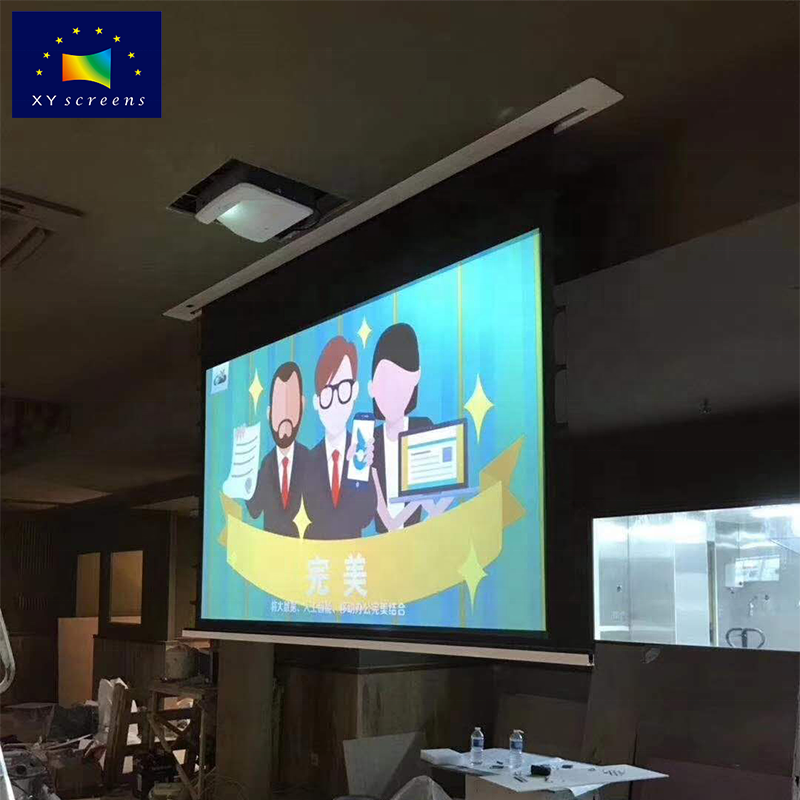

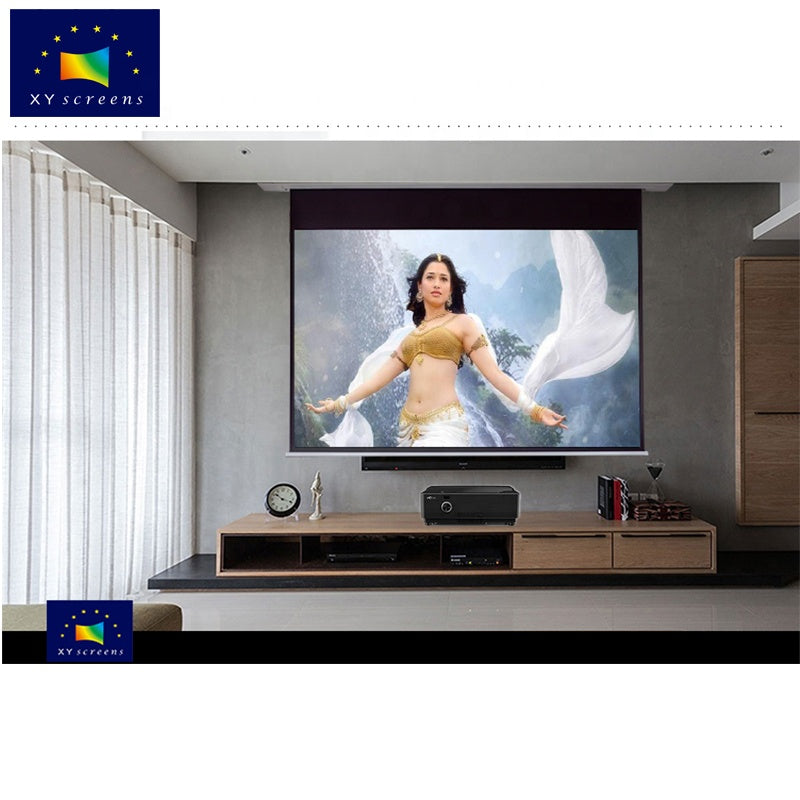

Application Cases
Screen Fabrics Options

WF1
front projection fabric

Material: Soft PVC +Special Coating
3D: Active 3D
Resolution: 4K
Gain: 1.0
Color: Front White and Back Black
View Angle: 160 Degree
Max Width: 4.8 m
Thickness: 0.32 mm

Black Crystal
ALR front projection fabric

Materials: Soft PVC+ Anti-light Coating
3D: Active 3D
Resolution: 4K
Gain: 0.8
View Angle: 160 Degree
Color: Dark Grey
Max Width: 3.66 m
Thickness: 0.31mm

Sound Max 4K
Woven Acoustic Transparent Fabric

Material: Woven Fiber
3D: Active 3D Resolution: 4K
Gain: 1.1 Color: White
View Angle: 160 Degree
Max Width: 3 m
Thickness: 0.72 mm
Acoustic Attenuation(db) 10KHz: -2
Light Attenuation: <1.6%

MF1
3D front projection fabric

Materials: Soft PVC+ Metallic Coating
3D: Active 3D+Passive 3D
Resolution: 4K
Gain: 2.4
View Angle: 120 Degree
Color: Silver
Max Width: 6 m
Thickness: 0.33mm

DP1
Rear & front projection fabric

Materials: Semi-transparent Soft PVC
3D: Active 3D
Resolution: 4K
Gain: 1.0
View Angle: 160 Degree
Color: White
Max Width: 4.8 m
Thickness: 0.31mm

RGF1
Rear projection fabric

Materials: Soft PVC+ Special Coating
3D: Active 3D
Resolution: 4K
Gain: 0.8
View Angle: 160 Degree
Color: Grey
Max Width: 4.8 m
Thickness: 0.28mm
Various Fabrics optional
We XYSCREENS have more than 50 types of fabrics for different applications. Welcome you inquiring!
Product Process
Motorized Projection Screens' Workshop
