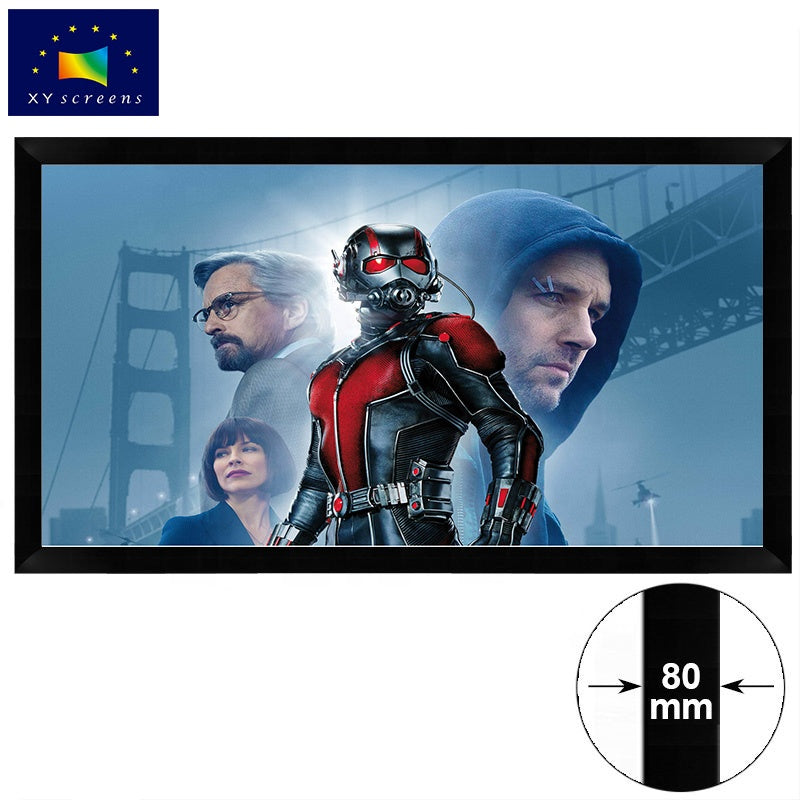

XYSCREENS 150 inch Fixed Frame Projector Screen with Silver Fabric for 3D Projection

Fixed Frame Projection Screen 80C Series

with 3D Silver Fabric for 3D Theater & Cinema

Product  Description

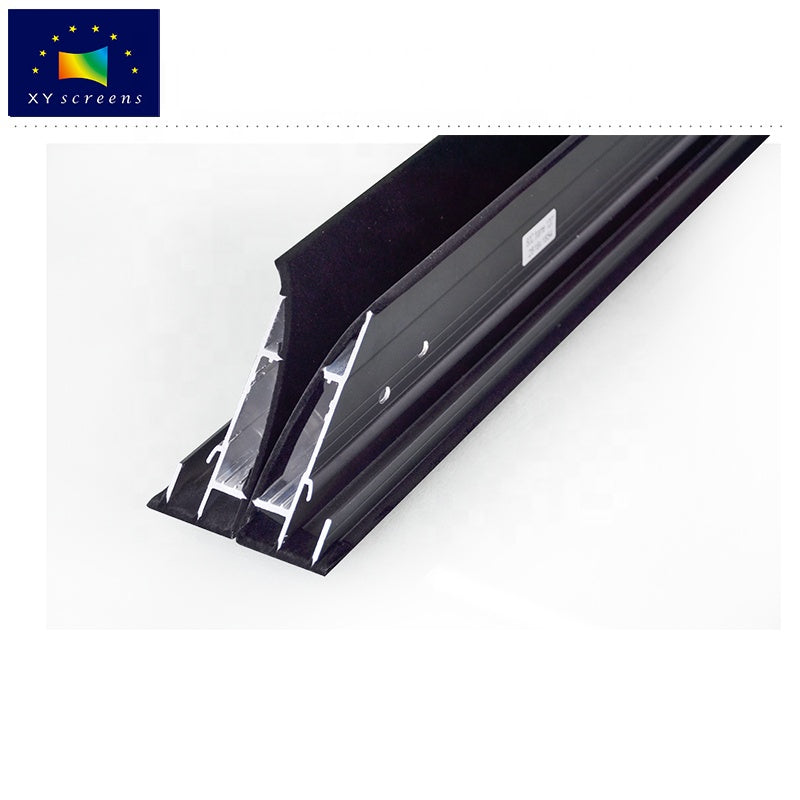

XY screens Fixed Frame Screens are perfect for cinemas or any places where you need to fix the screen. It is enclosed in an attractive velvet wrapped lightweight aluminum alloy frame. HK80C Series Fixed Frame Screen provides excellent picture quality - Suitable for 4K&3D television/movies.

Installation is easy - With its easy and adjustable fabric spring system, our Fixed Frame Screen is perfectly and permanently tensioned, ensuring that the screen is as flat and level as the mirror. Special designed slim bracket for an easy click on installation, also available as an in-wall display. Therefore, the users are able to set up in seconds.

 Product  Specification

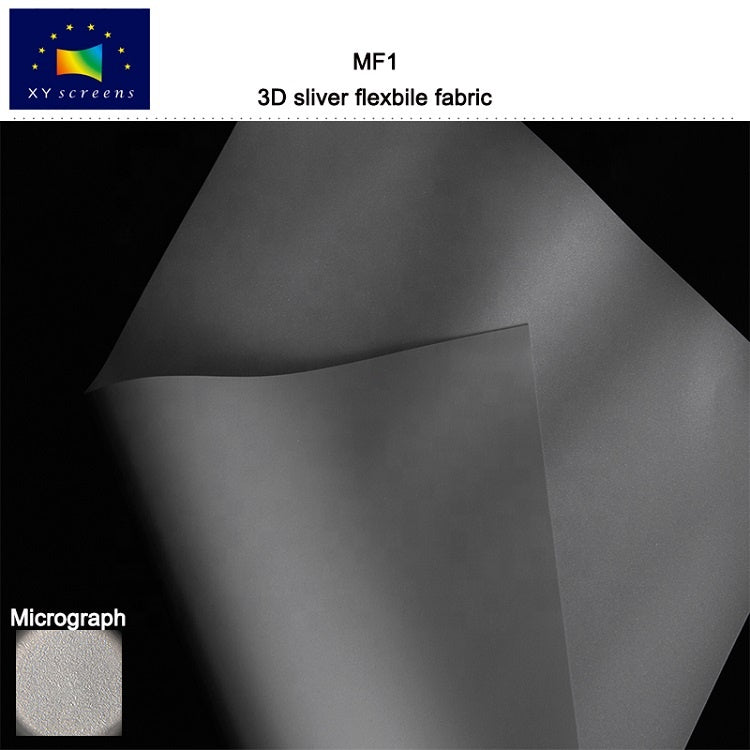

3D Sliver Flexbile Fabric MF1 introduction:

3D sliver flexbile fabric has metallic polytene on the surface, which make the fabric higher gain, clear picture, especially for the moving picture or vedio, it is the best chooice for 3D film.

Product Parameter:

Materials: PVC+ spray coating
Gain: 2.4
View angle: 120
Thickness: 0.3mm
3D: possitive 3d + passive 3D
Color: sliver front & sliver back
Width: 3.9 m
Product option: fix-frame screen/thin frame screen/electric screen/folding frame screen

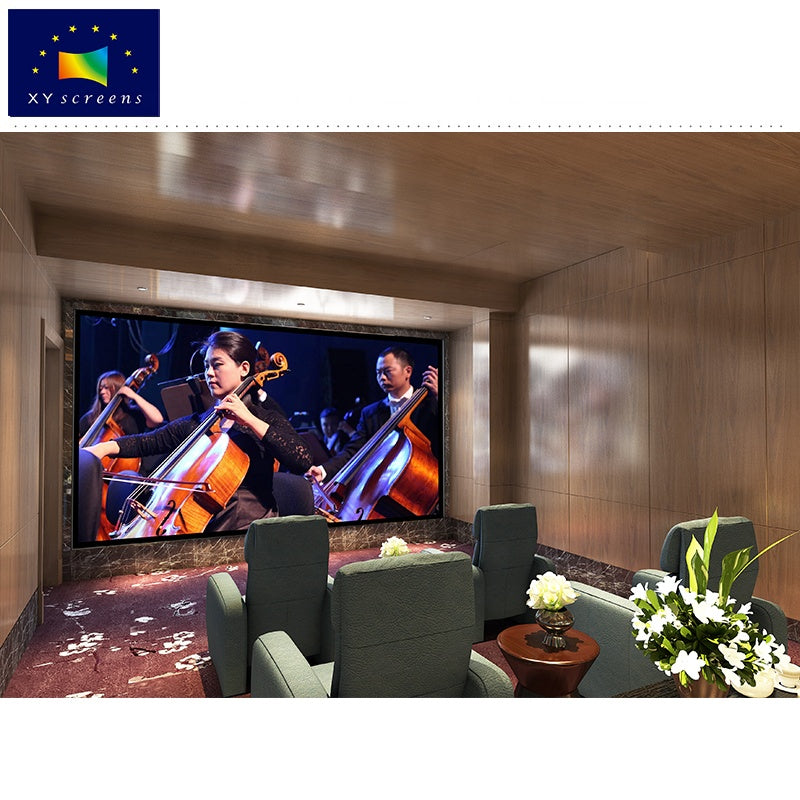

Product application: 3D Theater/Cinema

Recommend for 3D/HD /4K Theater/Cinema



Product  Features

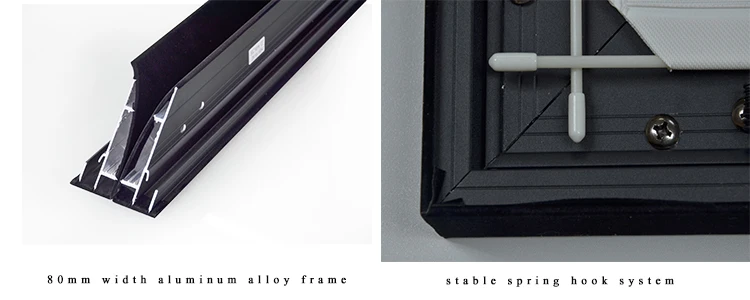

Four Sided Tension Design - Spring System

The tension springs along with the fixing lugs stretching and tightening the fabric to make the screen surface completely flat and wrinkle-free





Installation Accessories

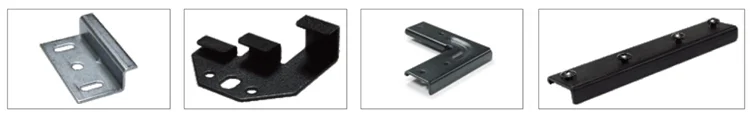

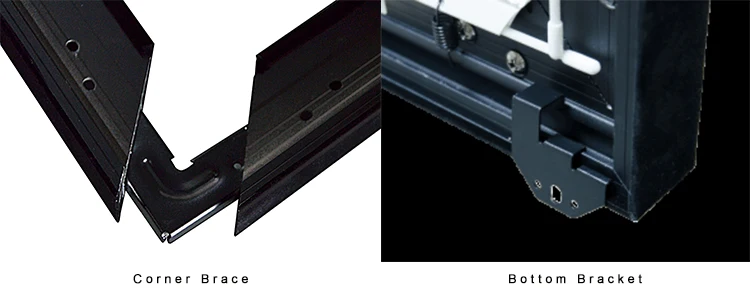

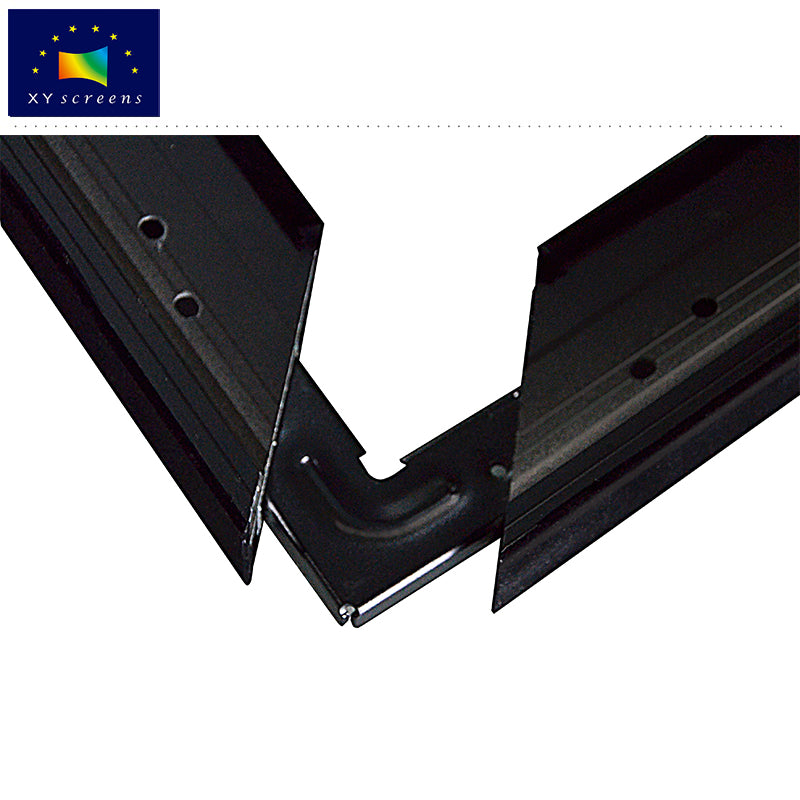

1. Top Bracket                           2. Bottom Bracket                   3. Corner Brace                         4. Connecting Bar

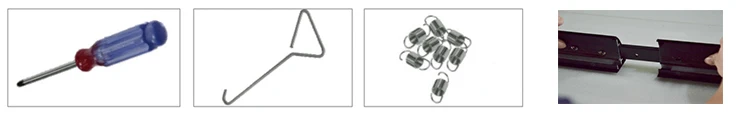

  5. Screwdriver                               6. Hook(To install the springs)              7. Spring

Remark:In order to facilitate transport, horizontal frame of 120"+ will be jointed by two or three pieces to reduce the total length.

Frame Color is Optional

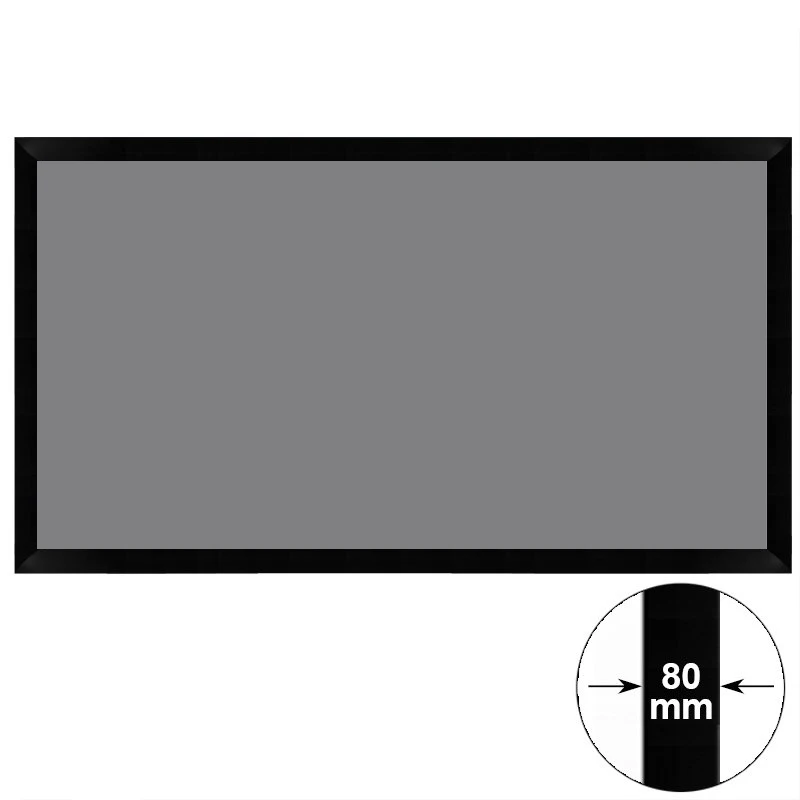

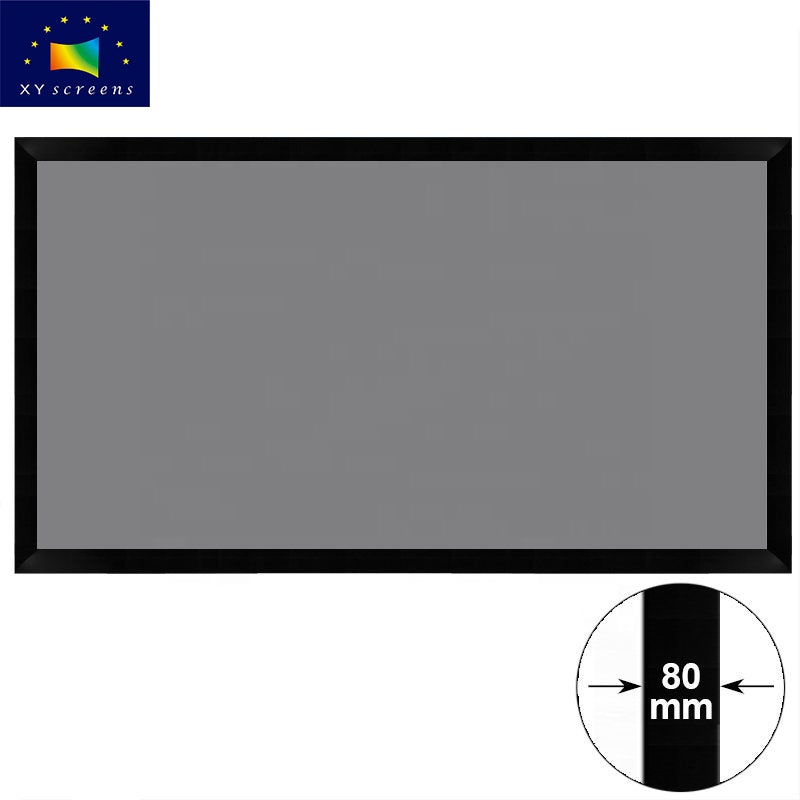

                                                                                  Frame Width Optional: 12mm           60mm                        80mm          100mm



                           Black                                    Golden                 Orange                        Grey                 Blue



Fabric Options

Product Model	Fabric Description	HD/4K	Support 3D Mode	Sound-Transparent
HK80C-Black Crystal	Grey flexible PVC with ambient light coated	4K	Active	No
HK80C-BCS1	Perforated Black Crystal	4K	Active	Yes
HK80C-DP1	Double side projection flexible PVC	HD	Active	No
HK80C-Sound Max4K	Wowen acoustically transparent 4K fiber	4K	Active	Yes
HK80C-WF1PRO	White flexible 4K PVC	4K	Active	No
HK80C-WF1	White flexible HD PVC	HD	Active	No
HK80C-Soundmax5	Perforated White Screen	4K	Active	Yes
HK80C-MF1	Silver flexible PVC with metallic polytene coated	4K	Active +Passive	No
HK80C-MFS1	Silver flexible perforated PVC with metallic polytene coated	4K	Active +Passive	Yes
HK80C-Sound Max2	Wowen acoustically transparent HD fiber	HD	Active	Yes
HK80C-Sound Max4K	Wowen acoustically transparent 4K fiber	4K	Active	Yes



Installation Mode

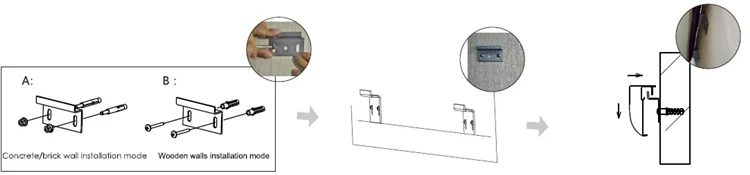

1. According to the quantity of the mounting brackets and appropriate distance, you should install the brackets at the suitable position on the wall with screws.

2. Hang the screen on the wall.

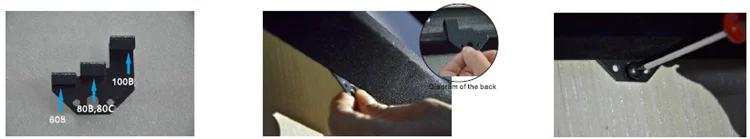

Install the bottom bracket if necessary(If you need to fix the screen or find that the bottom of the screen does not fit perfectly on the wall, please follow the steps below.

1. Take out the bottom bracket(Please note that the mounting position is different for different frames.)

2. Gently lift the bottom of the screen, use the bottom bracket to hook the slot position of the frame.

3. Tighten a screw and installation completed.

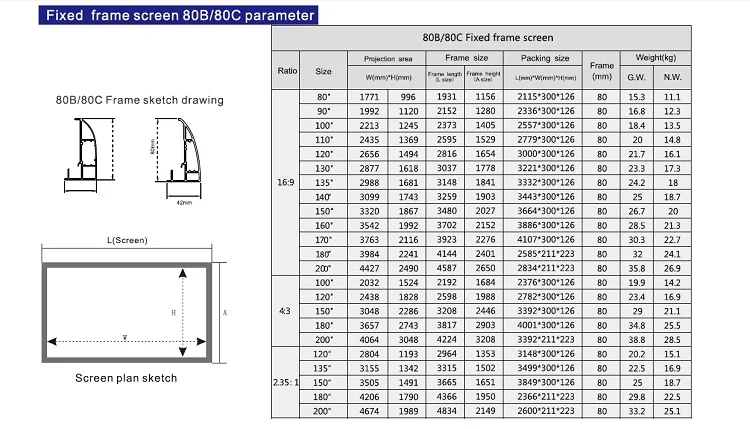

Dimension of HK80B/80C Series



Package

All of our projection screens are packed with sturdy carton box, and the surface of the carton covered a waterproof plastic film to prevent damage during transportation.
